VAJAX: GPU-Accelerated Analog Circuit Simulator

A proof-of-concept GPU-accelerated analog circuit simulator built on JAX, demonstrating:

  • Automatic differentiation for computing device Jacobians without explicit derivatives
  • GPU acceleration for large circuits using JAX's JIT compilation
  • Verilog-A model integration via OpenVAF/OSDI bindings for PDK compatibility
  • SAX-inspired functional device model API

Current Status

VAJAX is in active development as a proof-of-concept. All VACASK benchmark circuits are passing.

CI test results and benchmarks

Validation: Three-Way Comparison

VAJAX results are validated against VACASK (reference simulator) and ngspice. All simulators use identical netlists and device models (PSP103 MOSFETs via OSDI).

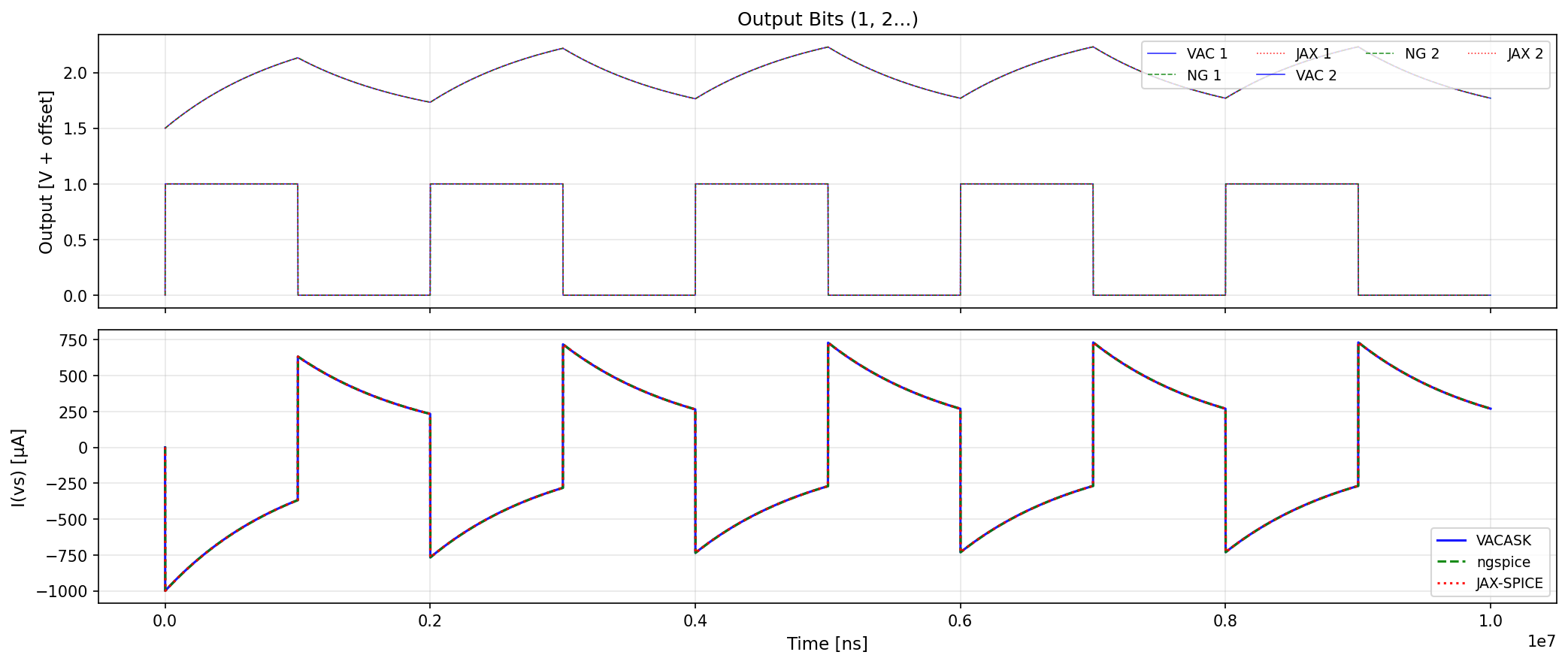

RC Low-Pass Filter

Simple RC circuit demonstrating basic transient behavior. VAJAX matches VACASK and ngspice exactly.

RC Comparison

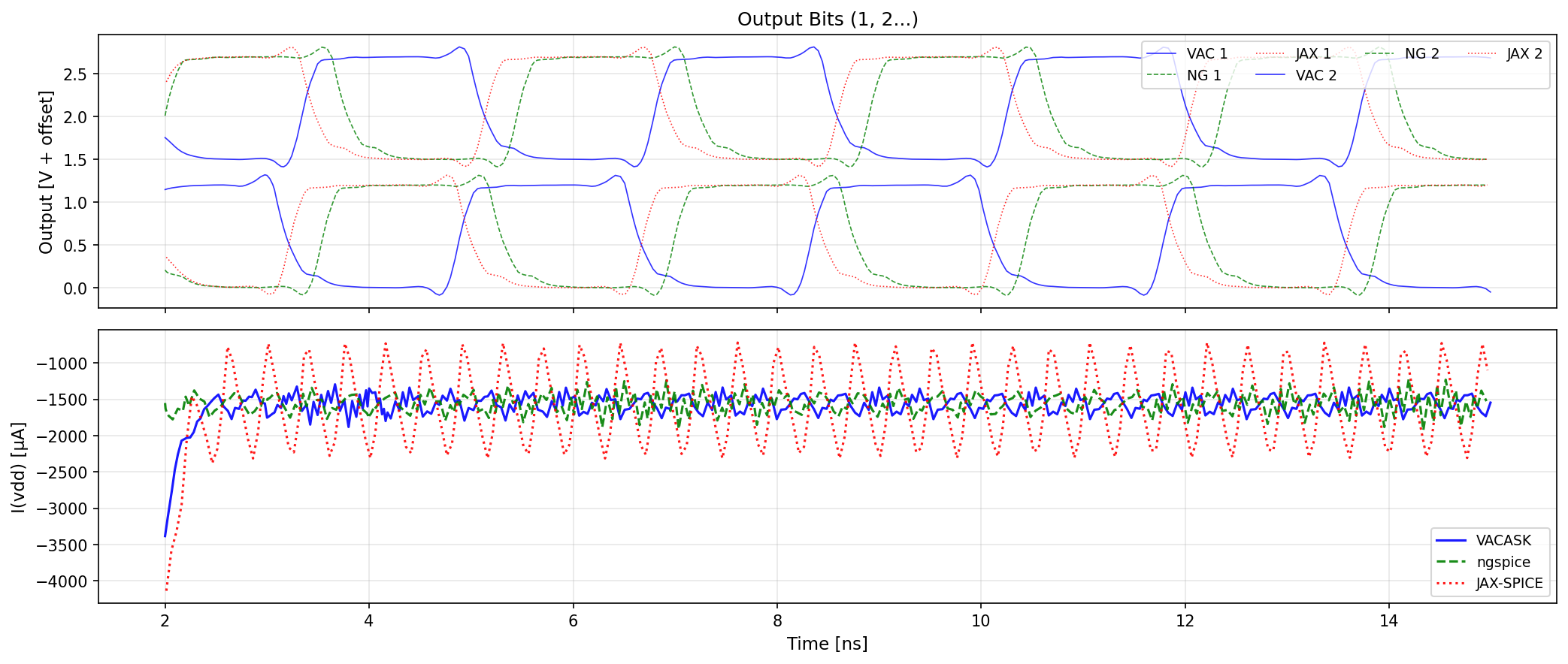

PSP103 Ring Oscillator

7-stage ring oscillator with production PSP103 MOSFET models. Shows excellent agreement in oscillation frequency and waveform shape.

Ring Oscillator Comparison

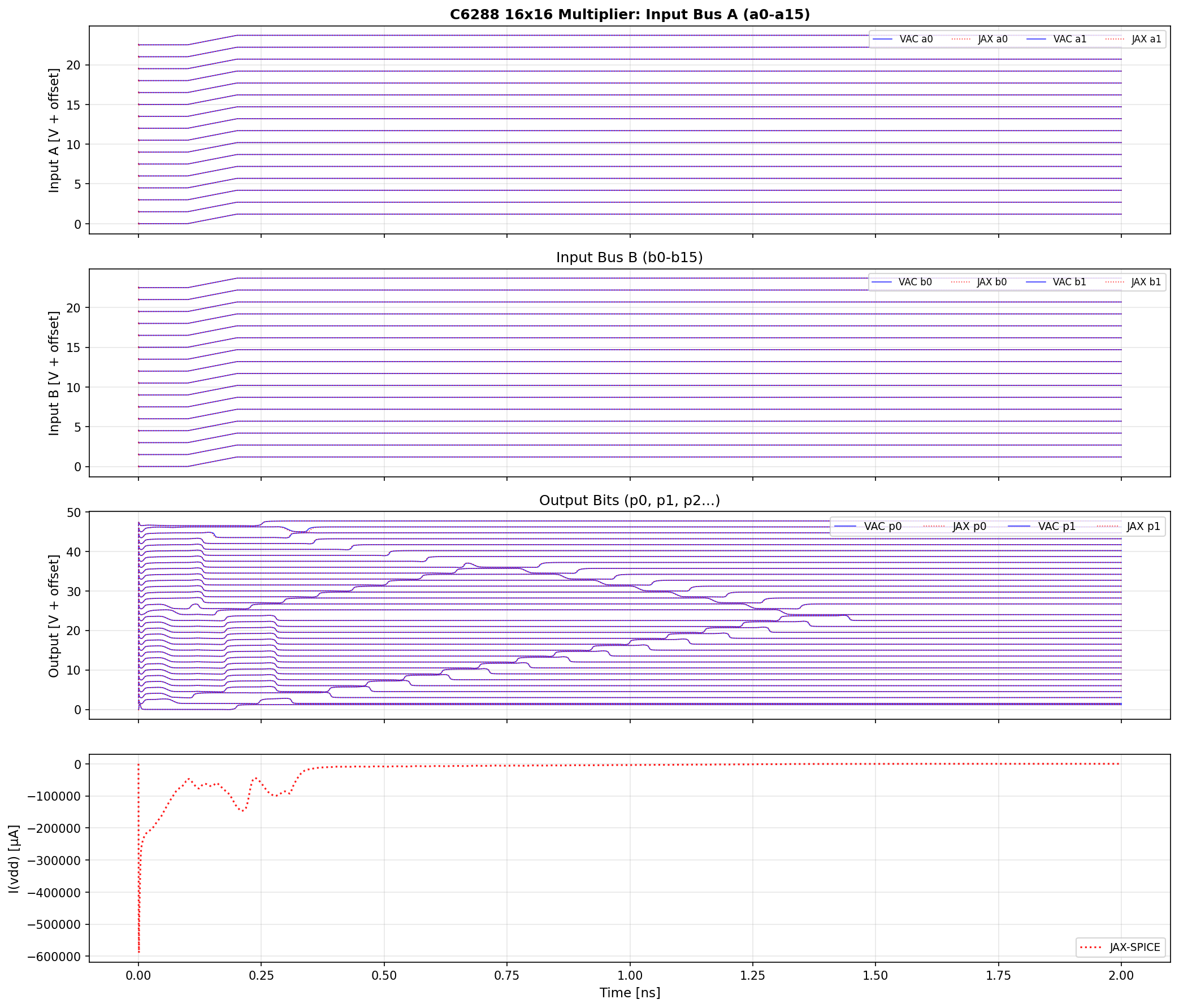

C6288 16-bit Multiplier

Large-scale benchmark with ~86,000 nodes. Uses sparse solver for memory efficiency. Demonstrates VAJAX scaling to production-sized circuits.

C6288 Comparison

Performance

VAJAX is designed for GPU acceleration of large circuits. The table below shows per-step timing against VACASK (C++ reference simulator) on CI runners.

CPU Performance (vs VACASK)

Benchmark Nodes Steps JAX (ms/step) VACASK (ms/step) Ratio RMS Error
rc 4 1M 0.012 0.002 6.6x 0.00%
graetz 6 1M 0.020 0.004 5.4x 0.00%
mul 8 500k 0.041 0.004 10.9x 0.00%
ring 47 20k 0.511 0.109 4.7x -
c6288 ~5000 1k 88.060 76.390 1.2x 2.01%

GPU Performance

Benchmark Nodes JAX GPU (ms/step) JAX CPU (ms/step) GPU Speedup vs VACASK CPU
c6288 ~5000 19.81 88.06 4.4x 2.9x faster
ring 47 1.49 0.51 0.3x below threshold
rc 4 0.24 0.01 0.05x below threshold

See Performance Analysis for the full overhead breakdown.

Quick Start

# Install with uv (recommended)
uv sync

# Run tests
uv sync --extra test
JAX_PLATFORMS=cpu uv run pytest tests/ -v

# Run a benchmark
JAX_PLATFORMS=cpu uv run vajax benchmark ring

Installation Options

# CPU only (default)
uv sync

# With CUDA 12 support (Linux)
uv sync --extra cuda12

# With SAX integration
uv sync --extra sax

Architecture Overview

vajax/
├── analysis/             # Circuit solvers and analysis engines
│   ├── engine.py        # CircuitEngine - main simulation API
│   ├── solver.py        # Newton-Raphson with lax.while_loop
│   ├── transient/       # Transient analysis (scan/loop strategies)
│   ├── ac.py            # AC small-signal analysis
│   ├── noise.py         # Noise analysis
│   ├── hb.py            # Harmonic balance
│   ├── xfer.py          # Transfer function (DCINC, DCXF, ACXF)
│   ├── corners.py       # PVT corner analysis
│   ├── homotopy.py      # Convergence aids (GMIN, source stepping)
│   └── sparse.py        # JAX sparse matrix operations (BCOO/BCSR)
│
├── devices/              # Device models
│   ├── vsource.py       # Voltage/current source waveforms
│   └── verilog_a.py     # OpenVAF Verilog-A wrapper
│
├── netlist/              # Circuit representation
│   ├── parser.py        # VACASK netlist parser
│   └── circuit.py       # Circuit data structures
│
└── benchmarks/           # Benchmark infrastructure
    ├── registry.py      # Auto-discovery of benchmarks
    └── runner.py        # VACASK benchmark runner

See Architecture Overview for the full design documentation.
