Getting Started with ChipFlow

Welcome to ChipFlow! This guide will help you get started with the ChipFlow IC design platform, which simplifies the process of designing, testing, and manufacturing custom silicon.

What is ChipFlow?

ChipFlow is an integrated circuit design platform that combines modern hardware design tools with cloud-based manufacturing services. It enables you to:

  • Design custom silicon using Python and Amaranth HDL

  • Simulate and verify your designs

  • Prepare and submit your designs for manufacturing

  • Manage the entire IC design workflow from a single platform

Prerequisites

Before you begin:

Clone chipflow-examples

Note

If you’re familiar with the Git command line then go clone [ChipFlow/chipflow-examples](https://github.com/ChipFlow/chipflow-examples) and jump ahead to Install the Dependencies

If the git world is new to you, start up GitHub Desktop. The first time you launch it you will be asked to sign in or create an account - we recommend you take this moment to create a GitHub account if you don’t already have one!

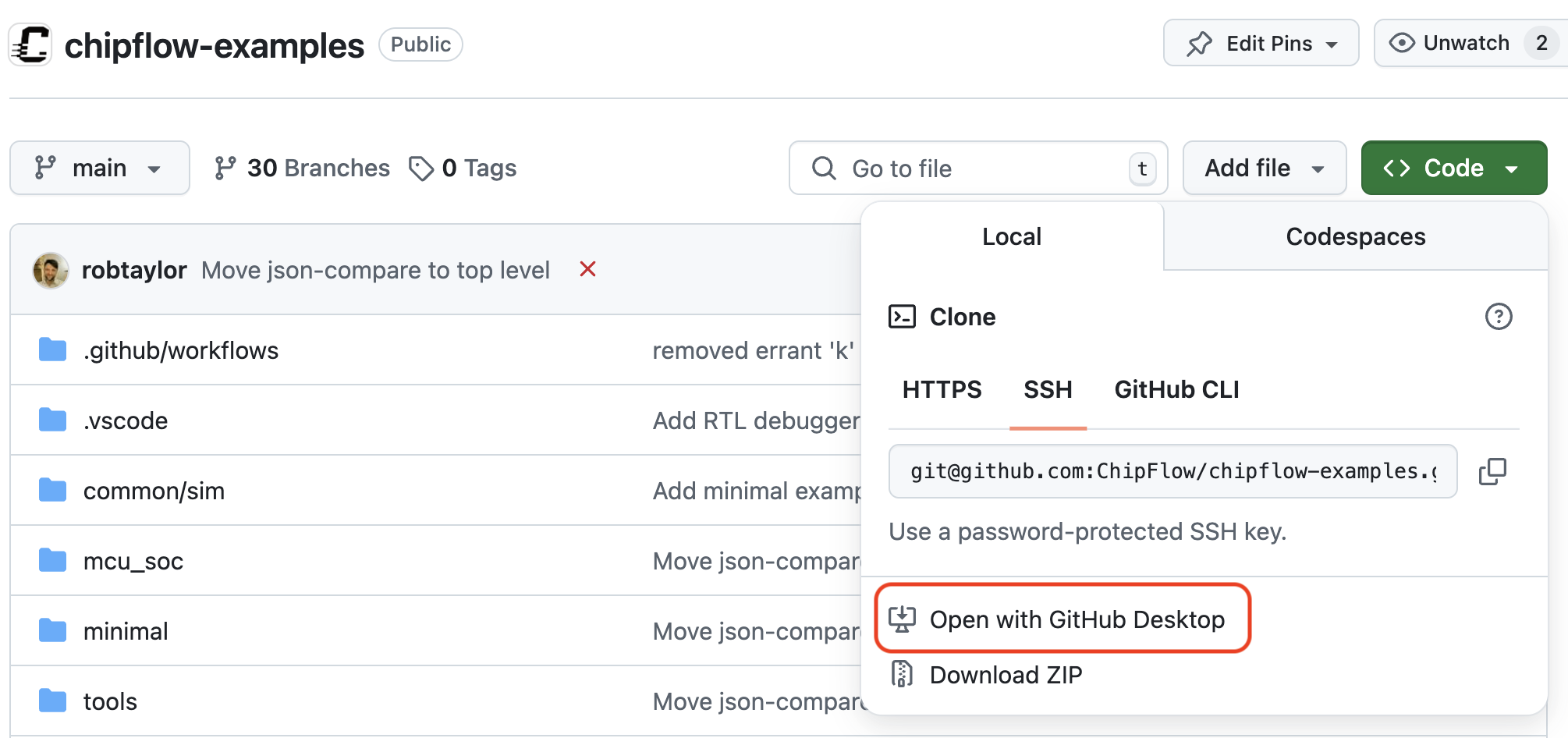

Navigate to the chipflow-examples repository and click the green ‘Code’ button at the top. Select ‘Open with GitHub Desktop’ and then follow the prompts (N.B. your web browser may have a pop-up to authorise opening an external app)

Image showing the link to click

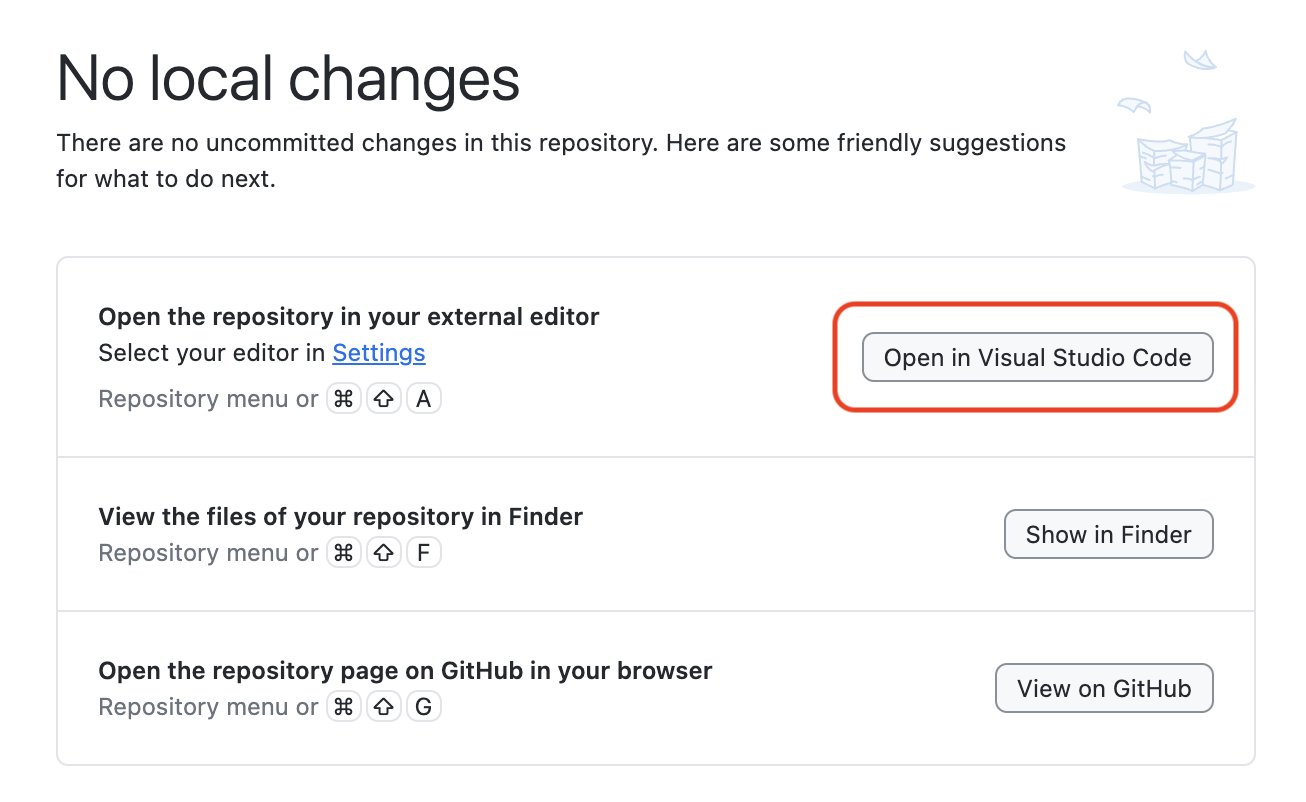

Once GitHub Desktop has cloned your repo you can click the button to open it in VS Code:

Image showing where to click in GitHub Desktop to open in VSCode

Install the dependencies

Note

In VS Code, open up a terminal by pressing Command-p: (Mac) or C-p (Windows/Linux).

We use PDM to manage our dependencies, so this will need to be installed. Follow the PDM install instructions for your OS.

Once PDM is installed, make sure you are in the chipflow-examples directory and then run:

pdm lock -d
pdm install

Set up the environment

Generate your API key by going to https://build.chipflow.org/ and logging in with your GitHub account.

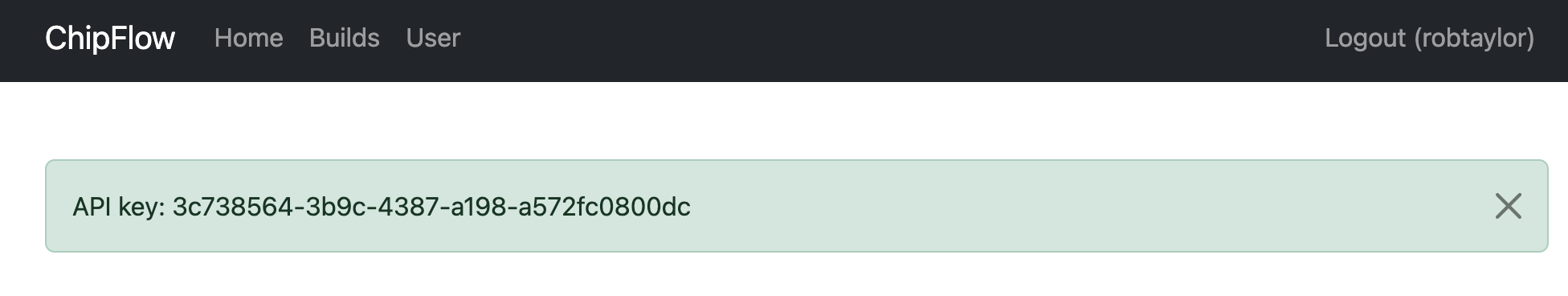

Click on the ‘User’ menu, then on ‘Create/Refresh API Key’ Your new API key will appear at the top.

Image showing a newly generated API Key

Image showing a newly generated API Key

Next, create a file called .env at the top level in the chipflow-examples directory, containing the line below, substituting your key from the page above:

CHIPFLOW_API_KEY=<Paste your key here>

Running a chip build

First choose a design to test. Here we will use the minimal design.

Change into the minimal directory in chipflow-examples to use this design. Now we need to ‘lock’ our pins - the ChipFlow tooling will then automatically allocate inputs and outputs from your design to pins on the chip.

pdm run chipflow pin lock

We can now simulate and test the design by running:

make sim-check

You should see the simulation model being built and run - and a small test firmware running on the simulated System-on-a-Chip (aided by our local friendly cat!)

pdm run chipflow sim
-- build_sim_cxxrtl
-- build_sim
pdm run chipflow software
-- gather_depencencies
-- build_software_elf
-- build_software
cd build/sim && ./sim_soc
🐱: nyaa~!
SoC type: CA7F100F
Flash ID: CA7CA7FF
Quad mode
pdm run json-compare design/tests/events_reference.json build/sim/events.json
Event logs are identical

Now you are ready to try building this design into a chip! To submit your design to ChipFlow Platform where it will be built into GDS, run:

pdm run chipflow silicon submit

This should return something like:

INFO:chipflow_lib.steps.silicon:Submitting c23dab6-dirty for project chipflow-examples-minimal
INFO:chipflow_lib.steps.silicon:Submitted design: {'build_id': '3f51a69c-b3e3-4fd3-88fd-52826ac5e5dd'}
Design submitted successfully! Build URL: https://build-staging.chipflow.org//build/3f51a69c-b3e3-4fd3-88fd-52826ac5e5dd

Your design will now start building: pictures and logs of the build are available at build URL that is returned, once it is complete.

If you would like to get the build logs streamed to your command-line, you can instead call:

pdm run chipflow silicon submit --wait

Installation

  1. Clone the ChipFlow repository:

    git clone https://github.com/ChipFlow/chipflow-lib.git
cd chipflow-lib

  2. Install dependencies using PDM:

    pdm install
